嵌入式 FPGA 開發套件
磐石智慧科技 RC-FMV-7 及 RC-FMC-5 嵌入式 FPGA 開發套件為高效能可程式化運算平台，結合FPGA 可程式邏輯與 ARM 多核心處理架構，提供高速資料處理與低延遲運算能力，適用於各類工業控制與智慧系統開發。透過FPGA的高度可客製化特性，開發者可依不同應用需求進行硬體邏輯設計與系統優化，快速建構專屬的嵌入式運算與影像處理平台。
本系列開發套件採用AMD Xilinx Zynq UltraScale+ MPSoC架構，整合ARM Cortex-A53應用處理器與FPGA可程式邏輯，可同時支援軟體與硬體協同運算，提供高效率且彈性的系統開發環境。系統具備多種I/O與擴充介面，包含 USB、Ethernet、MIPI Camera、HDMI、Serial 與 M.2 擴充介面，可輕鬆整合各類感測器與影像設備。
可廣泛應用於智慧製造、機器視覺、工業自動化與嵌入式系統開發等場域，協助企業與開發者快速建立高效能且可擴展的智慧運算與控制平台。
本系列開發套件採用AMD Xilinx Zynq UltraScale+ MPSoC架構，整合ARM Cortex-A53應用處理器與FPGA可程式邏輯，可同時支援軟體與硬體協同運算，提供高效率且彈性的系統開發環境。系統具備多種I/O與擴充介面，包含 USB、Ethernet、MIPI Camera、HDMI、Serial 與 M.2 擴充介面，可輕鬆整合各類感測器與影像設備。
可廣泛應用於智慧製造、機器視覺、工業自動化與嵌入式系統開發等場域，協助企業與開發者快速建立高效能且可擴展的智慧運算與控制平台。

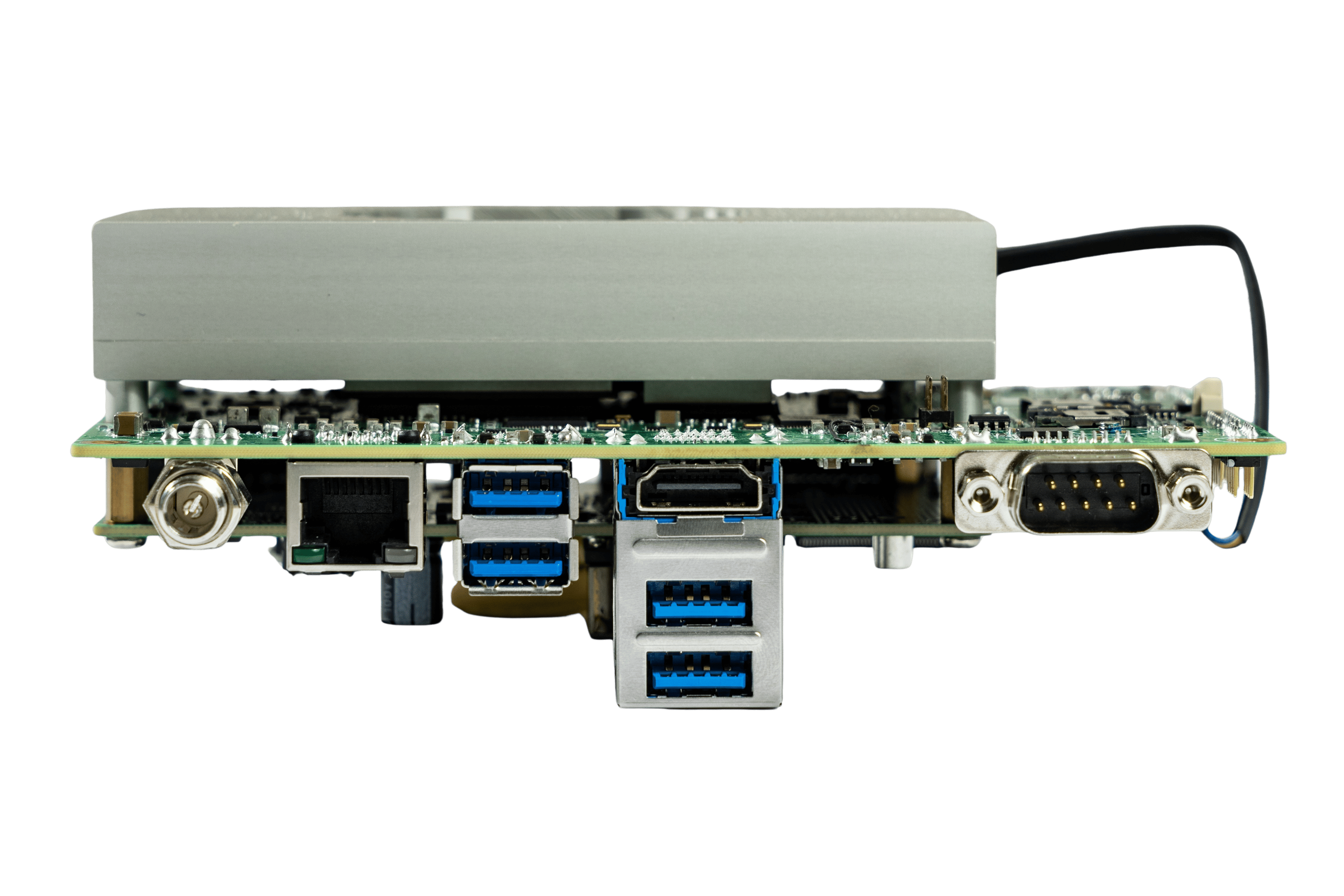

FMV-7 & FMV-5
3.5" FPGA programmable board
Features
Flexibility for factory automation application FPGA FW develop use
Various I0 to suit different application use
Delivering low latency and power-efficient performance
Multiple power input for different application, PoE & DC-IN
Support XCZU7EV-2FBVB900E & XCZU5EV-2FBVB900E
Specifications
| Processor System | SoC:AMD Xiliux Zynq UltraScale+ MPSoC Quad Cortex A53 to 1.5GHz, Dual Cortex R5 Application Processing Unit (APU) :Quad-core ARM Cortex-A53, supports NEON and single/double precision floating-point operations, up to 1.5GHz clock speed, 32KB L1 cache per core, 1MB shared L2 cache Real-Time Processing Unit (RPU) :Dual-core ARM Cortex-R5F, up to 600MHz clock speed, 32KB L1 cache, 128KB tightly coupled memory (TCM) Graphics Processing Unit (GPU) :ARM Mali-400 MP2, supports 64KB L2 cache, up to 667MHz clock speed Video Codec (VCU) :Supports H.264/H.265 video encoding and decoding, up to 4K resolution, supports 4:2:0 and 4:2:2 chroma subsampling Memory Support :Supports DDR4, LPDDR4, up to 32GB capacity, 256KB on-chip memory with ECC, 36Mb UltraRAM Programmable Logic (PL):504,000 system logic cells, 1,728 DSP slices, 312 Block RAM blocks (5.1Mb), 64 UltraRAM blocks (27.0Mb) Security Features :Supports secure boot and encryption |
|---|---|
| Memory | Technology :DDR4 2666MHz up to 32GB NPU:Up to 2.49 Tops. Supports INT8/INT16 hybrid operation Capacity PS :DDR4 8GB /64bit 2666Mbps Capacity PL:DDR4 4GB /32bit 2666Mbps eMMC Flash :64GB of eMMC NAND flash QSPI Flash:512Mb of flash |
| Ethernet | Controller:Realtek RTL8211FSI-CG Speed:10/100/1000Mbps POE PD Add on:Optional |
| Rear I/O | USB:4 x USB 3.0 Ethernet:1 x RJ45 HDMI OUT:1 x HDMI OUT Serial Port :1 X COM (RS232 ) |
| Internal I/O | USB:1 x USB3.0 MIPI :1 x MIPI for Camera DIO:2 x DI 2 x DO SPI:1 x SPI PWR/RST Function:1 x Power Button 1 x Reset Button 1 x Jumper for Power always on select |
| Expansion | M.2: 1 x M.2 B+M-Key 2242 (PCIe x1 , USB 2.0) for WIFI/LTE/NVME SSD 1 x M.2 M-Key 2280 (PCIe Gen3 x4) MIOe Out :1 x MIOe 120pin for signal extention TF Socket :1 x TF slot SIM Slot :1 x MicroSIM or SIM slot ( support M.2 2240 LTE module ) |
| System Indicator | LED Indicator : 1 x Green LED for board power 1 x Green/Red LED for System status ( Controlled by API ) |
| Watch Dog | 0-6553 Sec |
| RTC Timer | Yes |
| Power | Power Supply Voltage:12V/3A power input minimum Power Type:DC-in DC5525 IO |
| Environment | Temperature :Operating: 0 ~ 70 °C, depend on cooler solution Storage :Non-Operating: -40 ~ 85 °C |
| Mechanical | Dimensions:146mm x 102mm |
| Operating System | Linux:Petalinux |
| Rear I/O | USB:1 x USB3.0 HDMI IN :1 x HDMI IN Serial Port :2 X COM ( 1 x RS-232/485 , 1 x RS-232/CANBUS) |
| Internal I/O | MIPI :1 x MIPI for Camera I2C :1 x I2C MIOe In :1 x MIOe 120pin for signal in |
| Expansion | M.2 :1 x M.2 E-Key 2242 ( USB 2.0 ) |
| Power | POE PD Add on :PoE+ , 802.3at class 4 |
| Mechanical | Dimensions:113mm x 70mm |
