AI Server / RC-V48

磐石智慧科技 RC-V48 是企業級 AI 智慧伺服器,結合 Central Management System(CMS)、Equipment Automation Program(EAP) 與 360° 巡檢系統,形成智慧監控與設備管理的一體化中樞。
RC-V48 能集中管理多台 AI Box,統一彙整 AI 偵測結果、事件紀錄與機台運行狀態,並整合成可視化監控介面。
系統內建 戰情室(War Room) 模式,以沉浸式巡檢畫面同步呈現現場 360 影像、AI 偵測結果與 EAP 資料,使管理者如同置身現場,快速掌握異常狀況與運作全貌。
相較於 RC-E4U系列,RC-V48 採用更精簡的機構設計與較小設備容量,適用於中型規模或設備數量較少的場域,同時仍保有完整的 AI 管理與監控功能。系統採工業級架構與穩定通訊模組,支援長時間穩定運行與多來源資料整合。
可廣泛應用於智慧工廠、無人值守站點與 AI 中控中心,協助企業建立集中化、可視化且具沉浸感的智慧監控核心平台。
背景

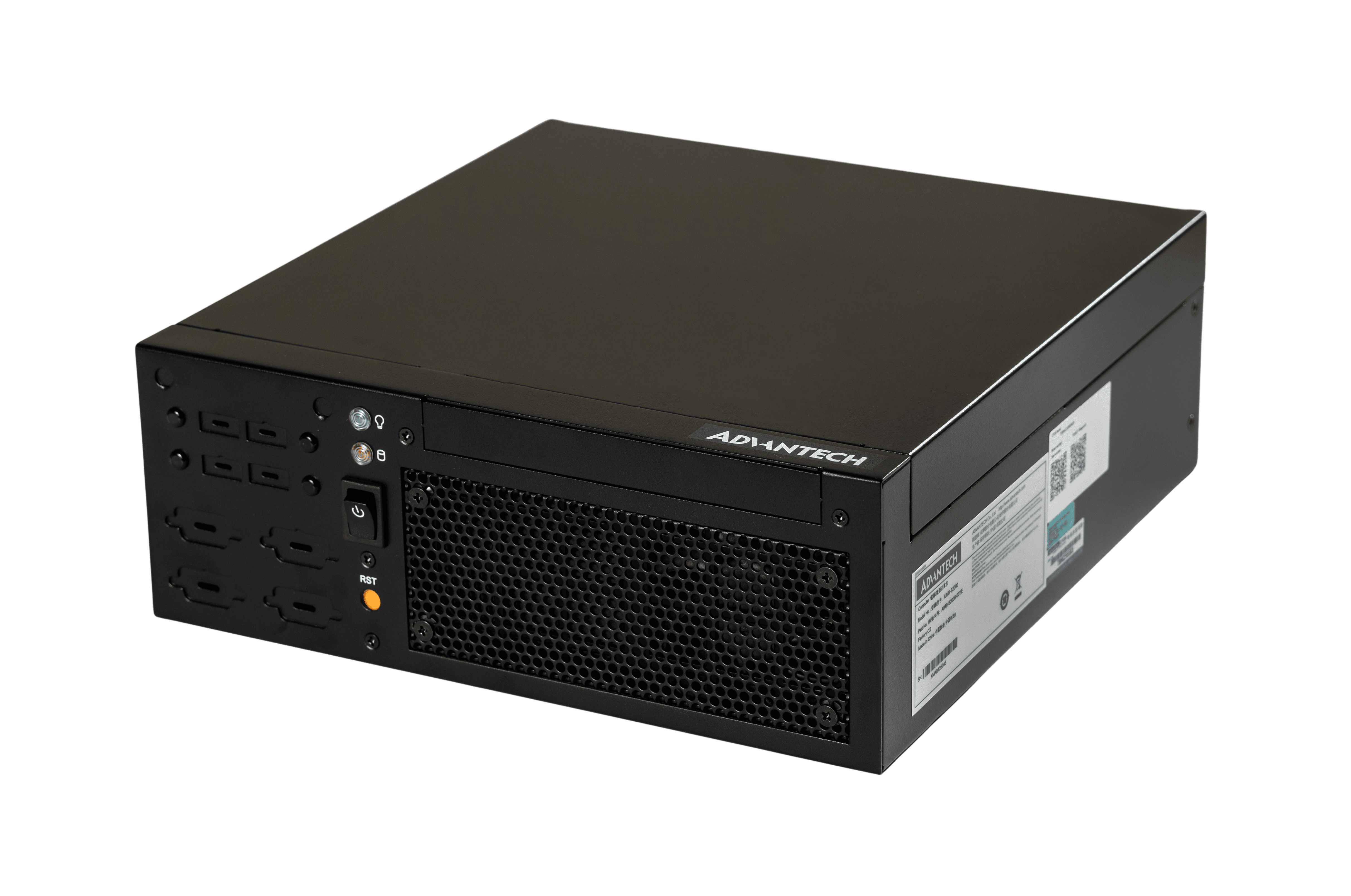

RC-V48
Embedded Mini-ITX Chassis with One Expansion Slot

Features
Economical embedded chassis for Mini-ITX motherboard
Front LED indicators for system fault detection
One expansion slot (low profile)
Reserved USB, COM, and WLAN antenna punchouts on front panel
Two 2.5" drive bays
Four SKUs, to support both ATX power supply & AC-DC power adaptor

Specifications
Drive BaySlim Optical Disk Drive and HDD:2.5" HDD*2 or 2.5" HDD*1 +slim ODD*1
CoolingFan:1 (7cm/39.45CFM)
Reserved PunchoutsUSB:4
Serial:4
WLAN Antenna:2
Slim ODD:1
Expansion slot:1 (low profile)
MiscellaneousLED Indicators:Power, HDD
Reset Buttom:1
Power Switch:1
Remote switch:0
EnvironmentOperating Temperature:0 ~ 40 °C (32 ~ 104 °F)
Non-operating Temperature: -20 ~ 60 °C (-4 ~ 140 °F)
Humidity:10 ~ 85% @ 40 °C, non-condensing
Vibration (5 ~ 500 Hz):1 Grms (HDD*1+ODD*1);0.5 Grms (HDD*2)
Shock:10G (with 11ms duration, half sine wave)
Physical CharacteristicsDimensions (W x H x D) :250 x 98 x 255 mm (9.84" x 3.86" x 10.04")
Weight:3.1 kg
Cooler:None
PSU:None
