磐石智慧科技 RC-ENAI-A 為高效能 AI 邊緣運算設備，採用 NVIDIA Jetson Orin™ 系列模組架構，提供強大的 AI 推論與影像處理能力，可於場域端即時進行資料分析與影像辨識，提升系統反應速度並降低雲端運算負載。本設備為工業級設計，並支援多元 I/O 與網路連接，可整合各類影像設備、感測器與系統平台，打造穩定且高效率的邊緣 AI 應用環境。

高效能 AI 型
專為 AI 視覺分析、深度學習推論與邊緣智慧運算設計，適用於影像辨識、資料分析與智慧監控等應用，協助企業在場域端即時完成 AI 運算與決策分析，建立高效率的邊緣智慧系統。
應用場景
-智慧製造檢測：即時影像辨識與瑕疵檢測
-智慧監控分析：人員、物件與事件即時辨識
-邊緣 AI 推論：現場即時 AI 分析與決策
-智慧城市與交通：影像分析與場域監控系統

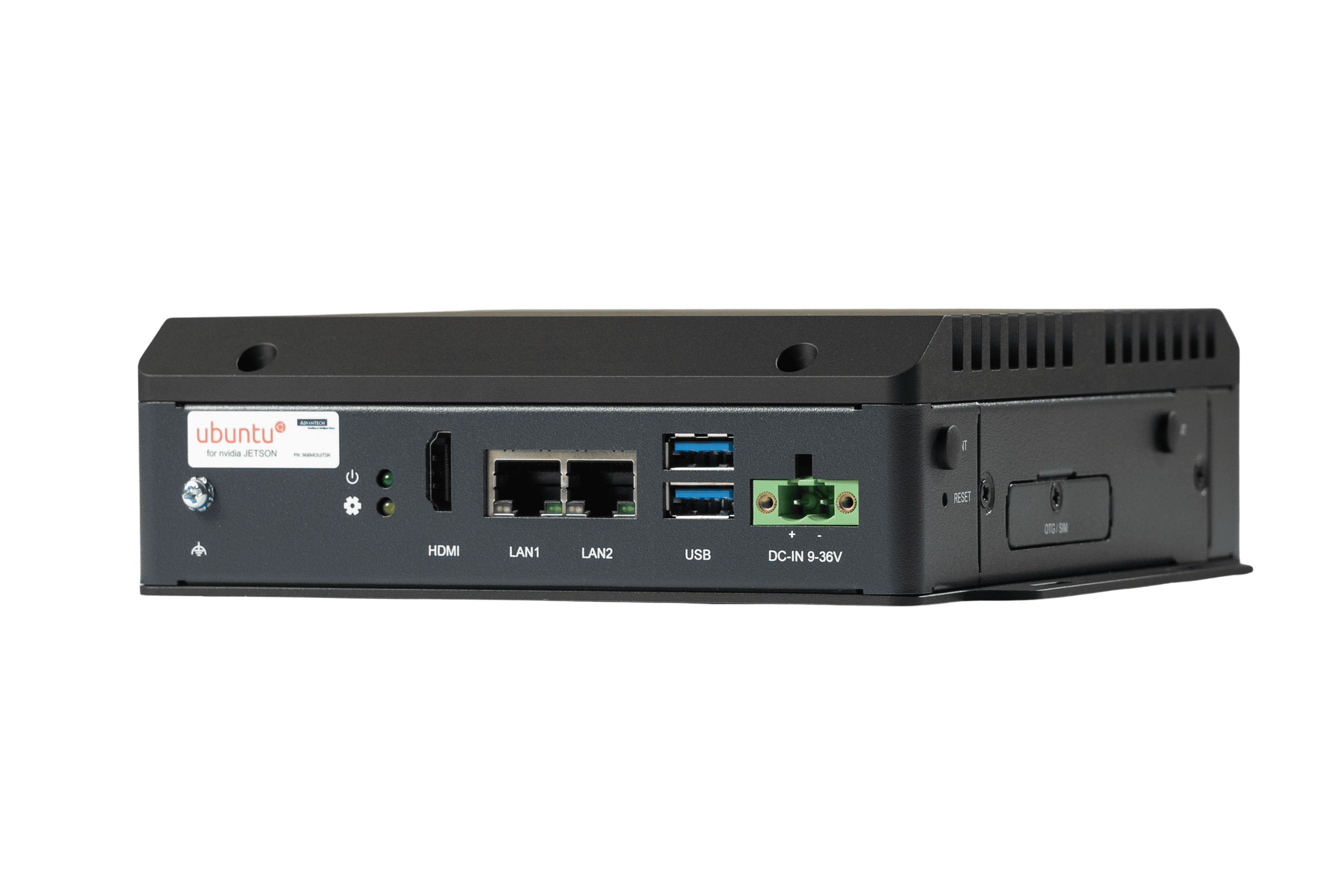

RC-ENAI-A

Industrial-Grade NVIDIA Jetson Orin™ Nano and NX Barebone Box PC

Features

NVIDIA Jetson Orin™ Nano and NX Module compatible Barebone PC

Industrial and Expandable Design

HDMI up to 3840 x 2160 at 60Hz resolution

Dual GbE LAN, 2 USB3.2 Gen 2

1 Nano SIM Slot

1 M.2 3042/52 Key B Slot, 1 M.2 2230 Key E Slot, 1 M.2 2280 Key M Slot

4 Kinds of Rear I/O for

Specifications

Compatible Modules	NVIDIA Jetson Series:Orin Nano and NX
Graphics	HDMI: 1 x HDMI 2.0, Maximum Resolution 3840 x 2160 at 60Hz Graphics Engine: NVIDIA Ampere GPU on Jeston Modules H/W Video Codec: Up to 4K60 encode/decode
Ethernet	Chipset:NVIDIA Jetson integrated RGMII and Intel 1GbE Controller Speed:2 10/100/1000 Mbps
Indicator	LED:1 x Power LED; 1 x Programmable LED
Front I/O	USB:2 x USB3.2 Gen 2 Type A GbE:2 x RJ45 for GbE
Rear I/O	3 x LAN & 1 WAN
Expansion	M.2: 1 M.2 3042/52 Key B Slot (PCIe/USB3.2 Gen2/I2C) 1 M.2 2230 Key E Slot (USB2.0/PCIe/UART/I2C) 1 M.2 2280 Key M Slot (x4 PCIe for NVMe) SIM: 1 Nano SIM Slot Antenna Holes: 4
Power	Power Supply Voltage:9-36V Power Type:2-pole lockable DC-in Power Consumption:40 Watts (Depends on Module Selection)
Environment	Operating Temperature: -20 ~ 60 °C Operating Humidity:5% ~ 95% relative humidity, non-condensing
Mechanical	Dimensions:152 x 173 x 50 mm (W x L x H) Mounting:Wall mount, DIN Rail mount Weight:1.25 Kg
Operating System	Linux:Ubuntu
Certifications	CE/FCC Class B
