AI Server / RC-E4U-520
磐石智慧科技 RC-E4U-520 是企業級 AI 智慧伺服器，結合 Central Management System（CMS）、Equipment Automation Program（EAP） 與 360° 巡檢系統，形成智慧監控與設備管理的一體化中樞。
RC-E4U-520 能集中管理多台 AI Box，統一彙整 AI 偵測結果、事件紀錄與機台運行狀態，並整合成可視化監控介面。
系統內建 戰情室（War Room） 模式，以沉浸式巡檢畫面同步呈現現場 360 影像、AI 偵測結果與 EAP 資料，使管理者如同置身現場，快速掌握異常狀況與運作全貌。
RC-E4U-520 採用工業級架構設計與穩定通訊模組，支援長時間運行與多來源資料同步。
可廣泛應用於智慧工廠、無人值守站點與 AI 中控中心，協助企業建立集中化、可視化且具沉浸感的智慧監控核心平台。
RC-E4U-520 能集中管理多台 AI Box，統一彙整 AI 偵測結果、事件紀錄與機台運行狀態，並整合成可視化監控介面。
系統內建 戰情室（War Room） 模式，以沉浸式巡檢畫面同步呈現現場 360 影像、AI 偵測結果與 EAP 資料，使管理者如同置身現場，快速掌握異常狀況與運作全貌。
RC-E4U-520 採用工業級架構設計與穩定通訊模組，支援長時間運行與多來源資料同步。
可廣泛應用於智慧工廠、無人值守站點與 AI 中控中心，協助企業建立集中化、可視化且具沉浸感的智慧監控核心平台。

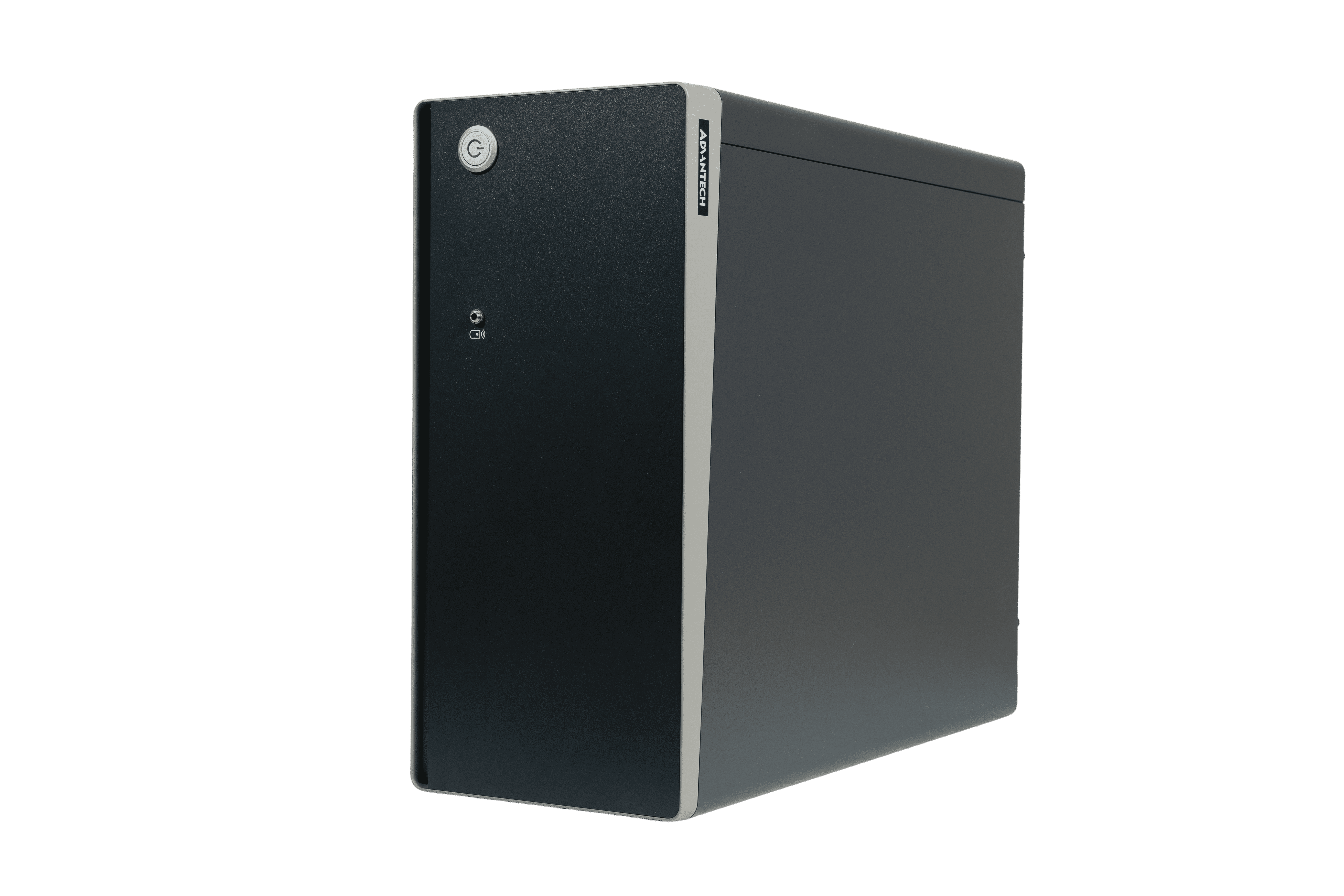

RC-E4U-520
4U System support AMD EPYC 7003 series server CPU
Features
4U Edge AI Server supports AMD EPYC 7003 series processors
Able to feature 4x single-slot or 2x dual-slot graphic cards
Up-to 768GB DDR4 3200 DRAM
Build in ATX 3.0 1200W PSU for total 700W graphic card TDP
NVIDIA Certified with RTX 6000 Ada
Specifications
| Processor System | CPU:7313P Core Number:16 Max. Speed:3.7GHz L3 Cache:128MB TDP (W):155W Supports Model:AIMB-592SF, AIMB-592SL BIOS:AMI BIOS 256 Mb SPI |
|---|---|
| Chipset | N/A |
| BIOS | AMI BIOS UEFI 256 Mbits SPI |
| Memory | Technology:DDR4 up to 3200 MT/s, ECC memory supported Max. Capacity:64GB Socket:6 x 288pin RDIMM (ECC) |
| Discrete GPU Slot | PCIe Slot:PCIe 4.0 x16 slot Qty:4 TDP:Up to 700W for all graphic cards |
| Built-in Display | Chipset:BMC VGA:1 |
| Ethernet | Controller: LAN1: 2.5GbE Intel i226-LM LAN2: 2.5GbE Intel i226-LM LAN3: 10GbE Intel X550 LAN5: BMC LAN Connector:RJ45 x5 (592SF) |
| Audio | N/A |
| Others | Watch dog Timer:255-level timer interval, setup by software TPM:TPM 2.0 |
| I/O Interface | USB 3.2 Gen1:4 x USB 3.2 (Gen2 x 1, 5G) GPIO:8-bit GPIO (Optional) Serial:1x RS-232 |
| Expansions | Slimline SAS: SAS1 PCIe x4; SAS2 4 PCIe x1 |
| Storage | SSD:6 x 2.5" SATAIII hard drive bay with Max Height 7mm NVME:1 x M.2 M Key 2280 NVMe PCIe x4 |
| Software Support | Microsoft Windows:Windows Server 2019 Linux:Ubuntu 22.04 |
| Power Requirements | Power Type:AC in Power Input Voltage:100 - 240 V Power Supply:1200W build in |
| Mechanical | Mounting:Rack Mount (included) Dimensions (W x H x D):380 x 176 x 466.83 mm Weight:15.5 Kg |
| Environment | Operating Temperature: 0 ~ 40°C (with 2x RTX A5000, tested by NVIDIA Certified Program) 0 ~ 35°C (Advantech test standard) Vibration During Operation: With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis. Shock During Operation:With SSD: 10 G, IEC 60068-2-27, half sine, 11 ms duration Storage Temperature: - 20 ~ 60°C Relative Humidity:95% @ 40 °C (non-condensing) EMC:CE/FCC Class B Safety:LVD, CCC, BSMI |
