Product
720°攝影機

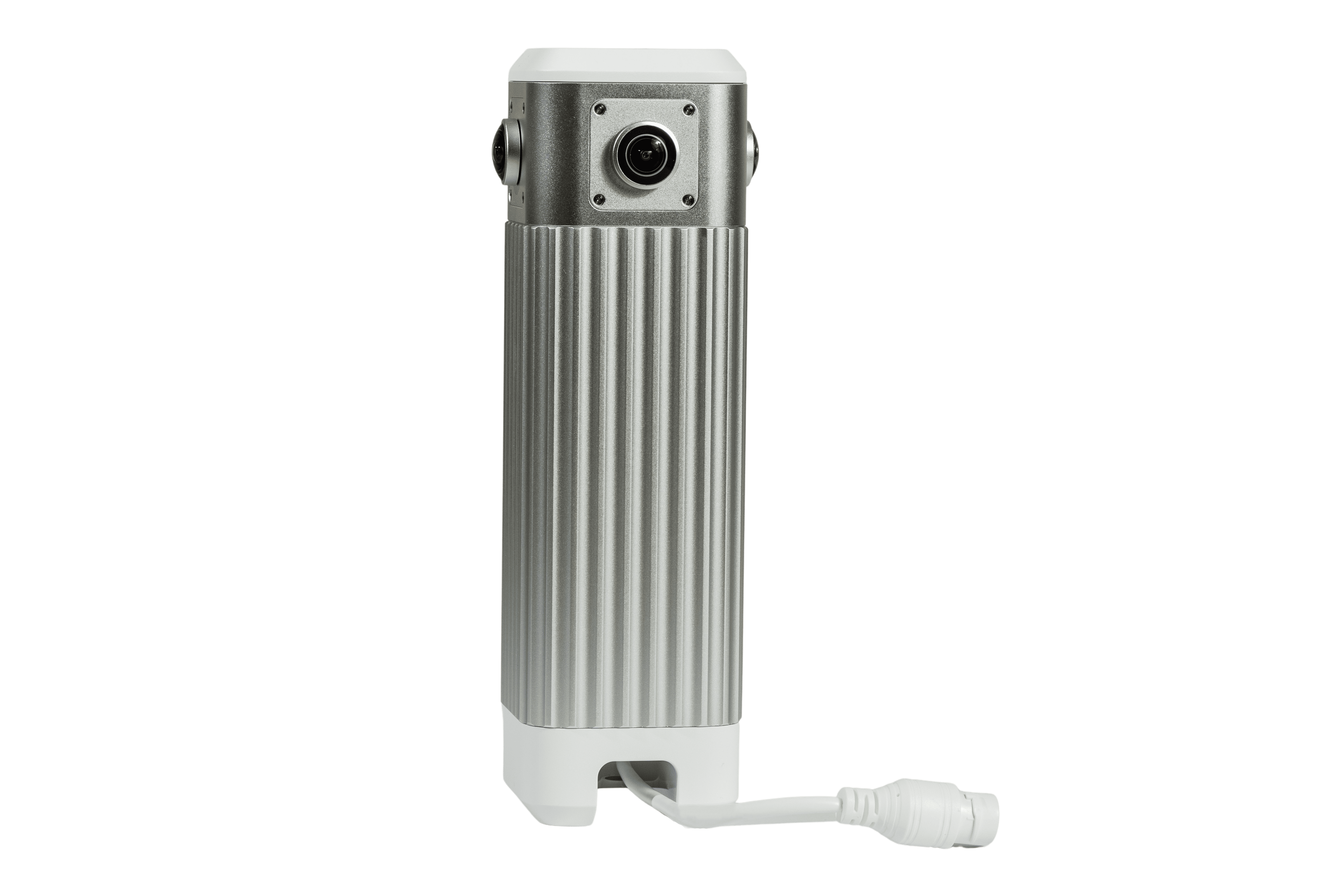

磐石智慧科技720°全景攝影機（RockCore 720° Cam） 採用上下雙全景鏡頭與高解析度影像技術，可同時捕捉 水平360°與垂直360°視野，實現真正 720°無死角全景監控，減少多攝影機部署成本。 產品支援 PoE 供電與低光補償模式，適用於全天候監控環境。 攝影機可與磐石 AI Box、Rec Box 與 Central Management System 完整串接，支援電子圍籬警報、事件錄影回放與設備狀態監控。 本系列提供多種解析度與外觀選項，能靈活應用於智慧工地、工廠監控、停車場、校園及公共安全場域，協助企業以更低成本實現高效、智慧的全景 AI 安防架構。
RC-360-1
720 Degree AI Patrolling Monitor
Features
INTERFACE : Ethernet 10/100/1000 via RJ45 x1
Maximum output Resolution : 3840x1920@30fps
OPTICAL FEATURES : 360° (Horizontal) x 180° (Vertical) field of view F2.2 aperture
Sensor : 1/1.8" 8M CMOS sensor x4
AUDIO : Microphone x1
Specifications
| Interface | Ethernet 10/100/1000 via RJ45 x1 |
|---|---|
| Power | PoE 802.3at Class 4 |
| Power | 11.5W |
| Video Output | 640x320@30fps 1920x960@30fps 1920x1080@30fps 3840x1920@30fps H.264 in RTP/RTSP streaming |
| Control | DHCPC/DNS/NTP/HTTP/HTTPS/IPv4/TCP/UDP RTP/RTSP/RTMP/ONVIF (Profile S) |
| Optical Features | 360° (Horizontal) x 180° (Vertical) field of view F2.2 aperture 1/1.8" 8M CMOS sensor x4 |
| Audio | Microphone x1 |
| Physical Features | 68 x 68 x 200mm( Not including accessory cap, lens, PoE Cable) Approximately 1.03kg 1⁄4" camera screw hole PMS 877 C Aluminum / Anodized,IEC60529_IP66 Humidity(IEC 60068-2-78)、Salt Test (MIL-810F section 509.4), Solar Testing(IEC-60068), Thermal Shock(MIL-810) |
| Temperature | -10°C to 50°C operating, -20°C to 60°C storage |
| Electrical Safety | CB: IEC 62368-1 : 2018 ED.3 EU / CE: EN 62368-1 ED.2 New Zealand / Australia: AS/NZS 62368-1 ED.2 test Taiwan / safety: CNS 15598-1 |
| EMI/EMS Regulation | Taiwan / EMC: BSMI(CNS15936) EU / CE: EN 55032 / EN 55035, Class A USA / FCC: 47 CFR Part15, Subpart B, Class A Canada / ISED: ICES-003, Issue 7, Class A AS/NZS: CISPR 32, Class A |
| Environmental | GP Compliance |
| Compliance | NDAA |
